ACELab PC-3000 Flash
About the PC-3000 Flash
The PC-3000 Flash is a hardware-software system intended for recovering data from all NAND based devices (USB Flash Drives, SD, MS, xD, MMC, CF, VoiceRecorder, iPhone etc.) in such cases where there is no access through the authorized drive interface.
The PC-3000 Flash can make low-level diagnostics and repairs of SSD drives in technological mode.
Data recovery from USB drives, memory cards, mobile storage devices
The PC-3000 Flash is based on ACE Lab’s own “know-how” technology of getting direct access to Flash memory microchips. The microchip is de-soldered from the storage device and read by our special device – the “Flash reader” – providing access to data when the controller is damaged. This technology greatly increases the chances of successful data recovery even when the storage device is physically damaged. The PC-3000 Flash contains an up-to-date large memory chip database that allows you to identify and read microchips in automatic mode. Complicated stack organizations which consist of several parts are automatically detected by the PC-3000 Flash as well.
Microchips are becoming more high-tech, new principles of functionality are being created and new requirements and protocols for microchips appear, for example, TLC microchips. Because of this constant change, the Flash Reader software is continuously updated to provide support for new microchips in accordance with the strict requirements necessary for correct functionality.
The PC-3000 Flash is capable of automatically checking and downloading the latest libraries via the Internet:
- Memory chip library
- ECC algorithm library
- XOR library
- Library of Analysis algorithms, preparation, and research methods
- Page format library
- Supply circuit library
- Rereading Modes reference book
- Dynamic XOR library
In addition to a great variety of manual and visual modes, the PC-3000 Flash has automatic data recovery methods that help solve both simple and difficult cases. For example, in most cases, Complex analysis allows for making all prior operations automatically and get access to user data.
Product Code: AP-ACE-FLASH
| PC-3000 Flash Reader | 1 pc. |
| USB 2.0 Cable | 1 pc. |
| PC-3000 Software | 1 pc. |
| User Manual | 1 pc. |
| TSOP-48 Adapter | 1 pc. |
| LGA/TLGA-52/60 (14×18) adapter | 1 pc. |
| BGA-152/132 adapter | 1 pc. |
| Multi-board Adapter | 1 pc. |
| Monolith Module | 2 pc. |
| LGA-52/TSOP-48 Module | 1 pc. |
| BGA-152/VBGA-100 Module | 1 pc. |
| PC-3000 Flash Reader | 1 pc. |
| USB 2.0 Cable | 1 pc. |
| PC-3000 Software | 1 pc. |
| User Manual | 1 pc. |
| TSOP-48 Adapter | 1 pc. |
| LGA/TLGA-52/60 (14×18) adapter | 1 pc. |
| BGA-152/132 adapter | 1 pc. |
| Multi-board Adapter | 1 pc. |
| Monolith Module | 2 pc. |
| LGA-52/TSOP-48 Module | 1 pc. |
| BGA-152/VBGA-100 Module | 1 pc. |
| Spider Board adapter (temporarily unavailable) | 1 pc. |
| LGA/TLGA-52/60 (12×17) adapter | 1 pc. |
Interface to connect Flash-Reader: USB 2.0
Supported types of memory chip covers:
- TSOP-48 (is included into the PC-3000 Flash Kit)
- LGA/TLGA-52 [14×18] (is included into the PC-3000 Flash Kit)
- BGA-152/132 (is included into the PC-3000 Flash Kit)
- Multiboard (is included into the PC-3000 Flash)
- LGA/TLGA-52 [12×17] (can be purchased separately)
- TSSOP-56 (can be purchased separately)
Memory chip reading speed: 5-15 МB/S. Determined by parameters of reading process and microchip architecture
Indicators:
- active state and status of the reader
- power supply on the circuit Vcc
- power supply on the circuit VccQ
Integrated Power Control Adapter parameters:
- the number of independent circuits: 2 (Vcc, VccQ);
- voltage range: 0.8 V – 3.6 V;
- voltage step: 0.05 V;
- source types: impulse or line – (can be selected by software);
- Limitation of current consumption: 150 mA, 200mA, 500mA, 1.5A, Unlimited;
- delays in buffer elements: 3 ns;
Supported types of controllers and memory chips:
- Supported types of controller chips
- Supported types of memory chips
Supported OS: Windows 7 (SP1), Windows 8.1, Windows 10, Windows 11
Recommended PC configuration:
CPU: Intel Core i5 (Quad Core)
RAM: 8GB
Storage configuration: RAID0 (strip) x2 HDD (7200 rpm) with total capacity of 1 TB
LCD Monitor: 22″, 1920×1080
Adapters & Sets

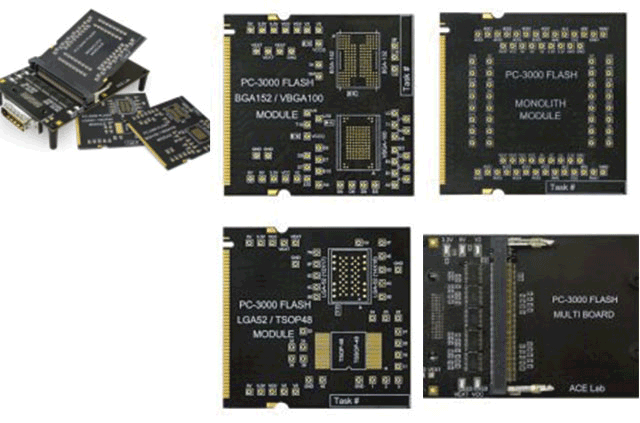

Monolith Set
Product Code: AP-ACE-MONO-SET
A new solution, ideal for engineers who focus on data recovery from MicroSD, SecureDigital and UFD devices in monolith form factors.
Contents:
- Multiboard Adapter – 1 pc.
- Replaceable Monolith Modules – 2 pcs.
- LGA-52/TSOP-48 Module – 1 pc.
- BGA-152/VBGA-100 Module – 1 pc.
- Card Adapter – 1 pc.
New Monolith Set adapters are supported by the latest PC-3000 Flash software version 7.0.5
Extended Set
Product Code: AP-ACE-EXT-SET
Optimal for experts who recover data from less frequent microchips seen in Flash storage devices in a typical, non-monolith form factor. Thus, engineers can be prepared to work productively even with the rarest cases.
Contents:
- TSSOP-56 adapter – 1 pc.
- VBGA-100 adapter – 1 pc.
- LGA/TLGA-52 [12×17] adapter – 1 pc.
Both Sets allow you to save up to 35% on the bundle purchase compared to the cost you would pay buying these adapters separately.
Multi-board Soldering Adapter with Replaceable Modules
Product Code: AP-ACE-MULTIB
Multi-board Soldering Adapter with Replaceable Modules
Product Code: AP-ACE-MAIN-MULTIB
Multi-board Soldering Adapter with Replaceable Modules
Product Code: AP-ACE-MONO-RPL
LGA-52/TSOP-48 Soldering Replaceable Module
Product Code: AP-ACE-LGA52-TSOP48
BGA-152/VBGA-100 Soldering Replaceable Module
Product Code: AP-ACE-BGA152-VBGA100
LGA/TLGA-52/60 (14×18 and 12×17) Adapters
Product Code: AP-ACE-LGA-TLGA5260
BGA-152/132 Adapter
Product Code: AP-ACE-BGA152132
TSOP-48 Adapter
Product Code: AP-ACE-TSOP48
