Infrared Chip-Off Rework Station
PDR Forensics
Controlled Chip-Off. Repeatable Results.
Precision infrared heating for forensic component work
PDR Forensics supplies Focused Infrared chip-off systems designed for controlled component removal, transfer and replacement in forensic laboratory environments.
The Chipmate range provides precise temperature management across both the target component and surrounding PCB, helping laboratories establish consistent, repeatable thermal processes.

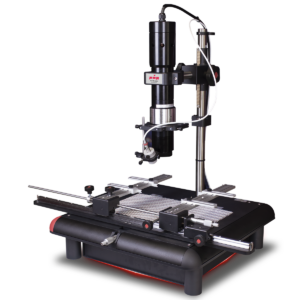

CHIPMATE
Product Code: AP-PDR-CHIP
Controlled manual access for forensic chip-off analysis.

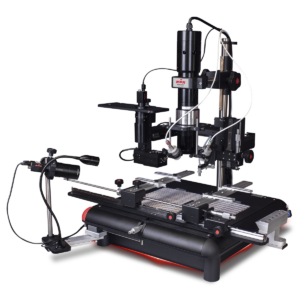

CHIPMATE PRO
Product Code: AP-PDR-CHIPPRO
Controlled manual access for forensic chip-off analysis.
CHIPMATE AUTO
Product Code: AP-PDR-CHIPAUTO
Controlled manual access for forensic chip-off analysis.
Focused Infrared technology, engineered for chip-off
Focused Infrared technology concentrates heat precisely where it is required, while allowing the surrounding PCB to follow a controlled thermal profile. This helps reduce reliance on manual heating techniques and operator judgement.
Precise Temperature Control
Define temperature targets for both the component and PCB, establish the required thermal profile and save the settings for repeatable procedures.
Component & PCB Monitoring
Depending on the system configuration, dedicated sensing options provide temperature monitoring of the target component and surrounding PCB, helping maintain the selected thermal profile throughout the process.
Built for the Forensic Laboratory
Dedicated Chipmate systems are designed to support laboratory workflows involving chip removal, chip transfer and component replacement, providing a controlled and repeatable approach on the laboratory bench.
Four Decades of Focused Infrared Engineering
With Focused Infrared technology developed and refined since 1985, PDR Forensics applies decades of thermal engineering experience to the demands of forensic component handling.
Keep the Work Area Visible
Focused Infrared heating is directed toward the selected target area, while the component and PCB remain visible throughout the procedure. This allows the operator to monitor the work as the process progresses.
Controlled Thermal Profiles
Configure ramp rates, dwell periods and temperature targets through the control software. Once established, profiles can be saved and recalled for future procedures.
Define the process. Save the profile. Repeat the procedure.
Successful chip-off work requires careful control of heat at both the component and PCB level. The Chipmate range provides a structured approach, allowing thermal profiles to be established, stored and reproduced for consistent laboratory workflows.
Chip-Off with Transfer and Replacement Capability
From controlled component removal to chip transfer and replacement, the Chipmate range provides Focused Infrared technology for forensic laboratories where thermal control, visibility and repeatability are essential.
