Trinocular Stereo Microscope

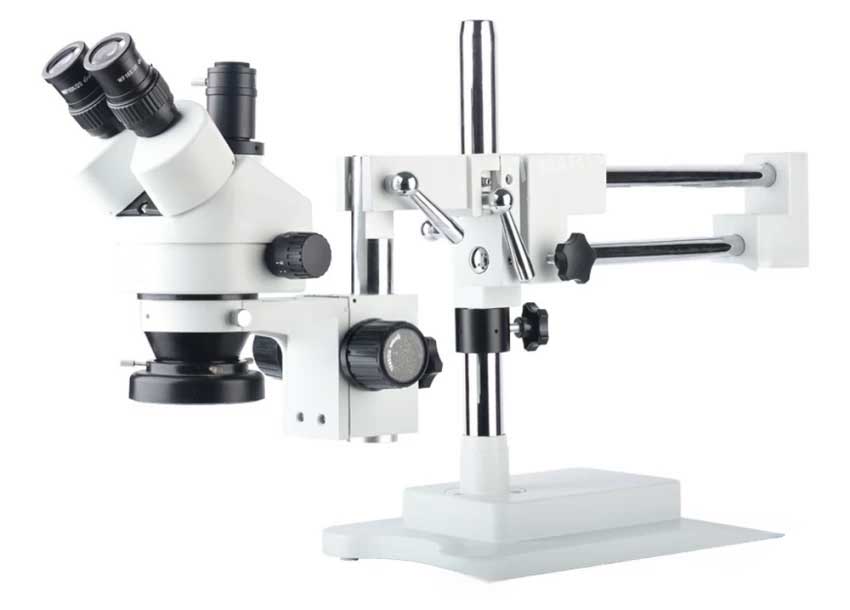

14X–90X Trinocular Stereo Zoom Microscope
Product Code: AP-MV-2103125469H1
The 14X–90X Trinocular Stereo Zoom Microscope is designed for professionals who require outstanding image clarity, precision, and versatility. Equipped with a heavy-duty double boom extension stand, smooth 14X–90X zoom magnification, and a bright LED ring light with adjustable brightness, this microscope is ideal for electronics repair, jewelry inspection, watchmaking, quality control, laboratories, engraving, and educational use.
Built with premium optical glass and precision-engineered components, this stereo microscope delivers crystal-clear, high-contrast, true-color images while providing excellent depth perception and a generous working distance for detailed inspection work.
Key Features
- Continuous 14X–90X zoom magnification for detailed inspection
- Trinocular viewing head allows attachment of a microscope camera (camera sold separately)
- 0.7X–4.5X zoom objective lens for smooth magnification adjustment
- 45° inclined viewing head with full 360° rotation for comfortable operation
- WF2X/10 high-eyepoint widefield eyepieces for enhanced viewing comfort
- Large 100 mm (4″) working distance accommodates larger specimens and tools
- Sharp, high-resolution stereo images with excellent contrast and flatness
- True-color optical performance using precision ground glass optics
- Adjustable interpupillary distance (54–76 mm)
- ±5 diopter adjustment for personalized focus
- Heavy-duty double boom stand with large base for stability and extended positioning

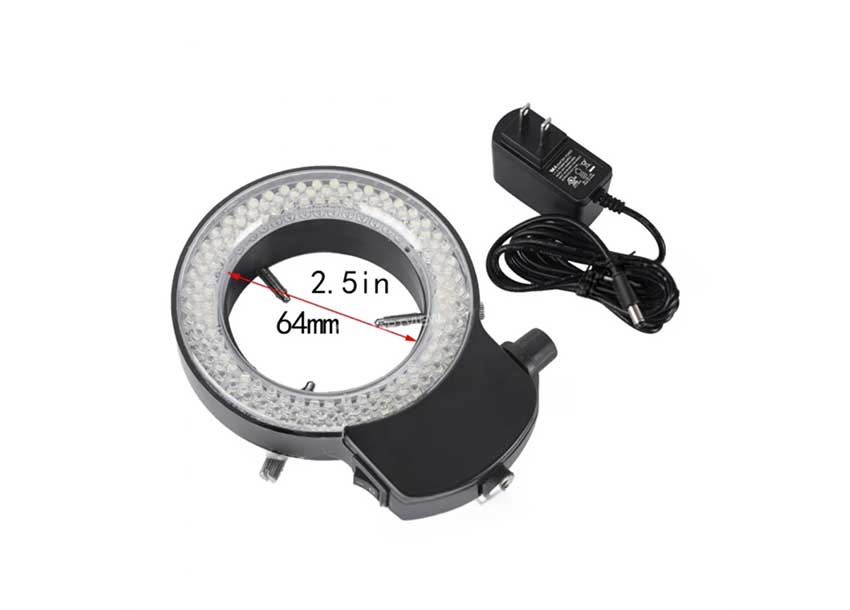

- Bright LED ring light with adjustable brightness control
- Durable all-metal construction with chrome-plated mechanical components
- Rubber eyecups help reduce eye strain during extended use
- Precision optical alignment for comfortable long-term viewing
Package Includes
- 1 Pair × WF2X/10 High-Eyepoint Eyepieces
- 1 × 0.7X–4.5X Zoom Objective Lens
- 1 × Double Boom Stand with Large Base Plate
- 1 × Dual-Arm Extension Bracket
- 1 × Adjustable LED Ring Light
- 1 × Dust Cover
Technical Specifications
| Magnification | 14X–90X |
|---|---|
| Objective Lens | 0.7X–4.5X Zoom |
| Eyepieces | WF2X/10 High-Eyepoint Widefield (Pair) |

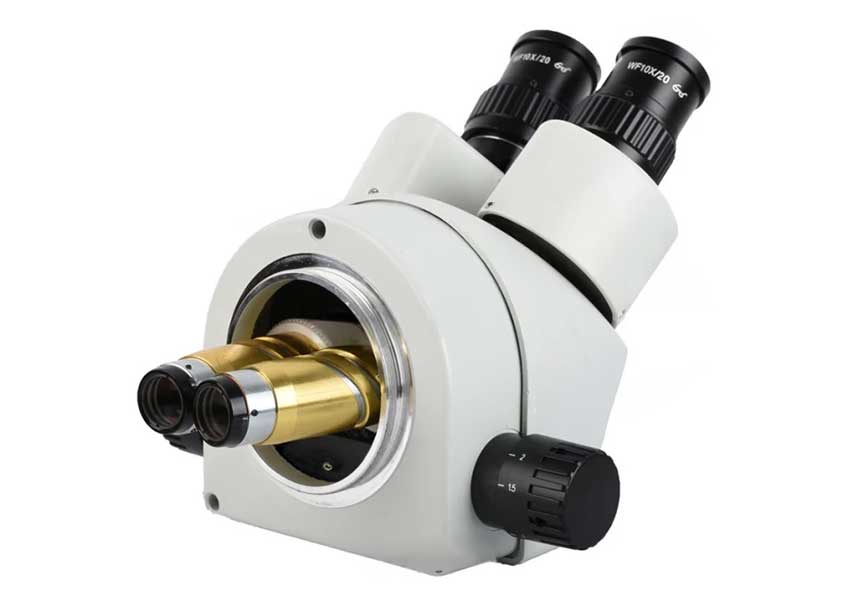

| Viewing Head | Trinocular |
| Head Inclination | 45° |
| Head Rotation | 360° |
| Working Distance | 100 mm (4″) |
| Interpupillary Adjustment | 54–76 mm |
| Diopter Adjustment | ±5 |
| Illumination | Adjustable LED Ring Light |
| Stand Type | Double Boom Extension Stand with Large Base |
